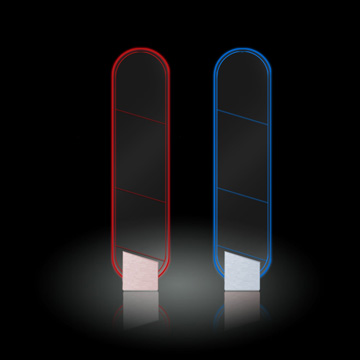

  RF Antenna IM-913




  Product Descriptions

    With attractive design, IM-913 is suitable for exclusive fashion stores, jeans and sportswear shops. Matching with Intematic's DSP board, detection range can be up to 2.3 meters.



* Chrome-plated steel base integrate with safe-glass body make antenna particularly resistant
* Attractive design, suitable for exclusive fashion stores, jeans and sportswear shops
* Almost invisible antenna bodies provide tactful and effective protection
* Use advanced DSP technology, easy handling, high detection and sensitivity, stable and reliable performance
* Illuminating LED light: blue, red
* Available as a TX/RX or TRX system.
* Matching board: PCB-DSP4600 (Tx - Rx)
         PCB-DSP3000 (Tx - Rx)
         PCB-3600 (Mono)
* Frequency: 8.2MHz



    Technical Specifications




* Detection distance
with PCB-DSP3000:
Soft label (4*4cm): 1.7m
Mini square: 1.9m  Big square: 2.3m
with PCB-DSP4600:
Soft label (4*4cm): 1.5m
Mini square: 1.6m   Big square: 2.0m
with PCB-3600 (single side):
Soft label (4*4cm): 75cm C 90cm
Mini square: 100cm C 120cm
Big square: 120cm - 140cm

* Main voltage: 220-240V AC @ 50Hz(Eu)
       110-120V AC @ 60Hz (US/CAN)
* Dimension: 1600(h)x425(w)x20(t)mm
* Weight: 21kgs/pce
* Packing detail: 1 pce/ctn, 161x46x17cm, 22.5kgs
